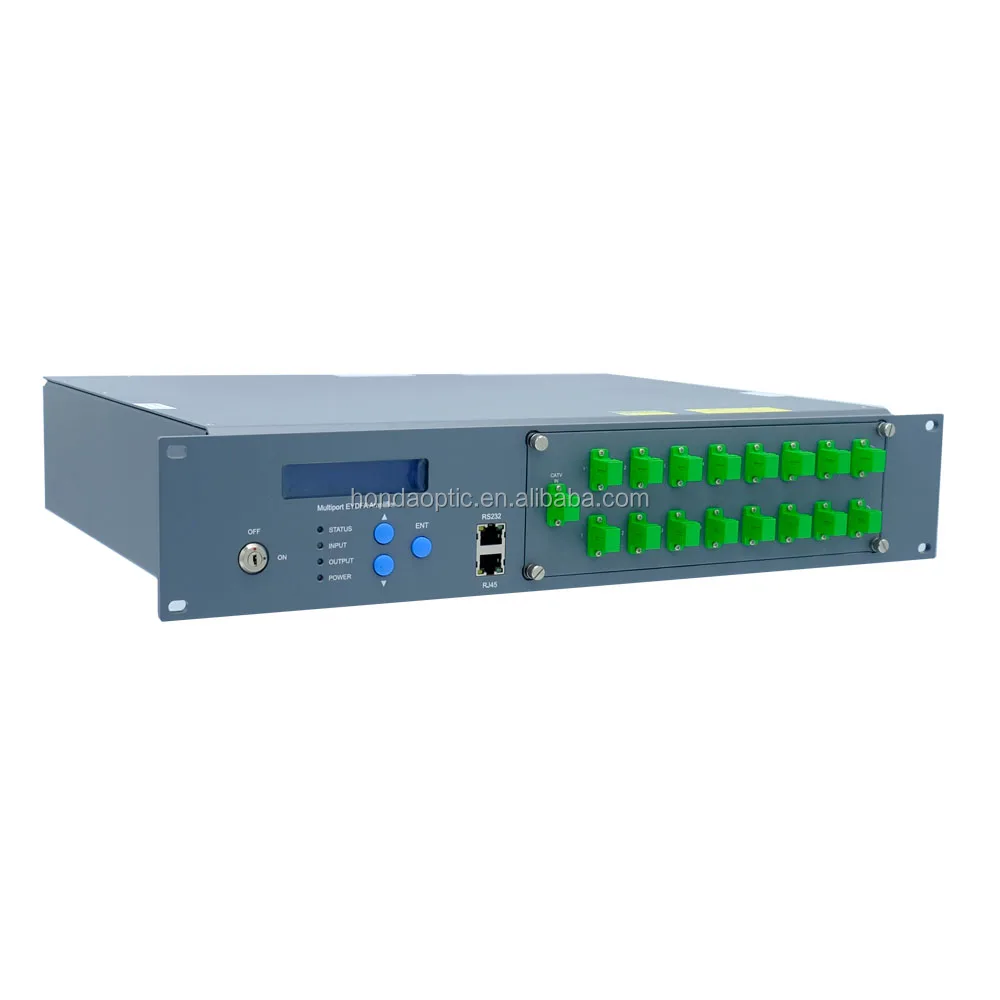

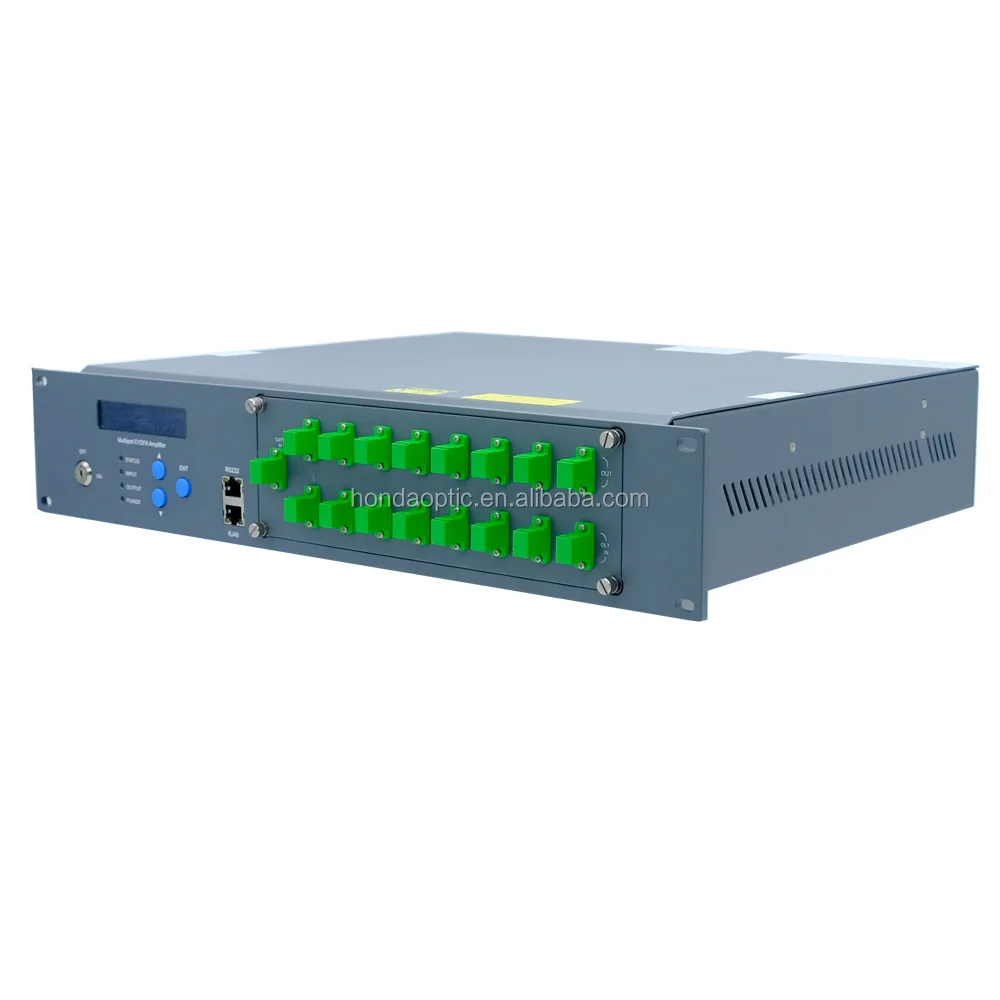

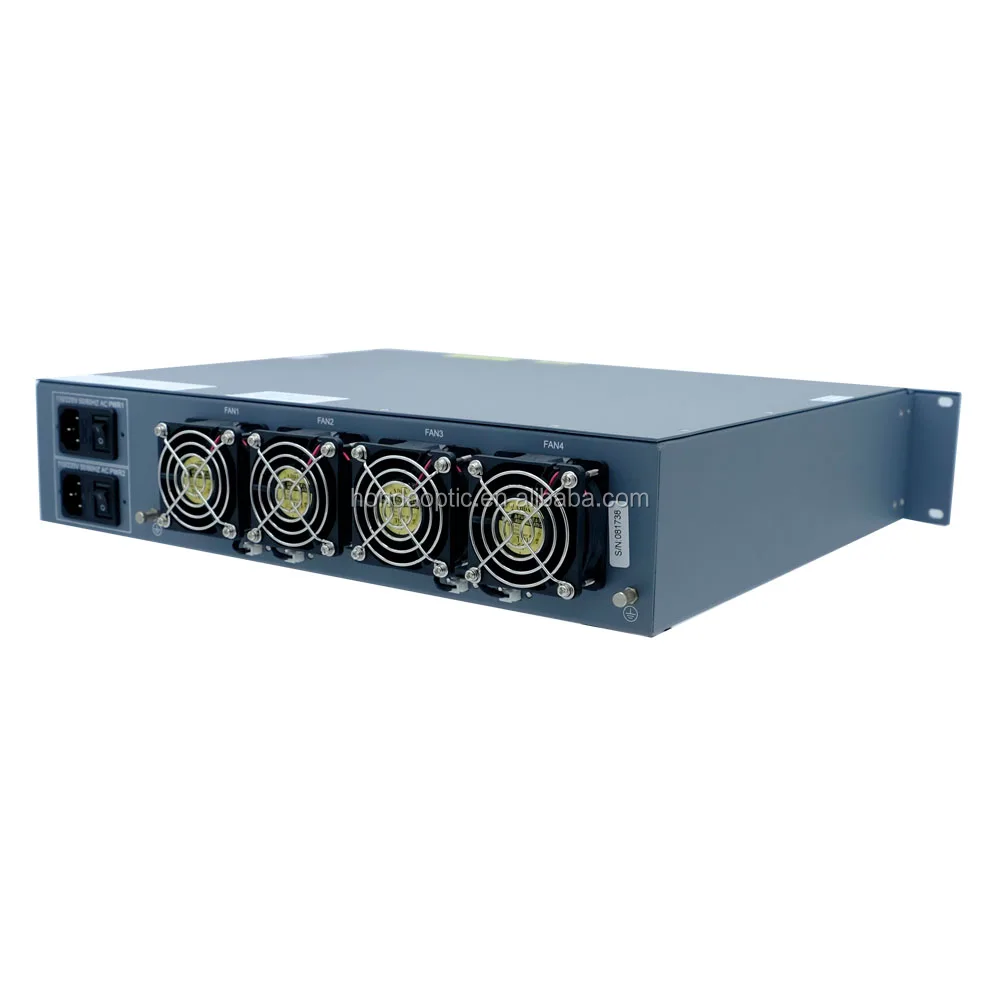

1550 EDFA Price, 1550nm High Power EDFA with WDM

FOB Reference Price:Get Latest Price
$1,000.00 - $3,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
HONDAO
Model Number:
8/16/32/64PON EDFA
Range of output adjustment (dBm):
Up 0.5,down 4.0
NW (kg):
13KG
Size (mm):
370(L)X486(W)X88(H)
Working Temp:
-0~55
Voltage (V):
220VAC(90~265),-48VDC
Power Consumption (W):
≤80
Web port:
RJ45(SNMP)
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs/ctn
Port
shanghai
Lead Time :
7-30days
Specification
Setting Information
Output (dBm)
31/32/33/34/35/36/37/38/39/40
Input (dBm)
-8~+10
Wavelength (nm)
1530~1565
Output stability(dB)
<±0.3
Fiber Connector
FC/APC、SC/APC
Noise Figure (dBm)
<6.0(input 0dBm)
Web port
RJ45(SNMP)
Product Description

Product Details

PON WDM is built in well-performed CWDM . Integrated 1490/1310 data stream from the OLT and
ONU into single fiber transmission through EDFA . Adopt GPON/GEPON signal

Feature

1.1540~1563nm operating bandwidth
2. Output ports :16~64 optional , total up to 2W
3. Each output ports with WDM . 1310/140/1550nm single fiber . XPON     Adopt .

4.APC,ACC,ATC controlled selecion
5. Efficient space , flexible installation and easy operation.

6. Power RS232 supervisory instruction . Excellent P/P ration .

Product Details
Main Products

GEPON/GPON OLT

GEPON/GPON ONU


Fiber Optical Equipment

FTTx Passive

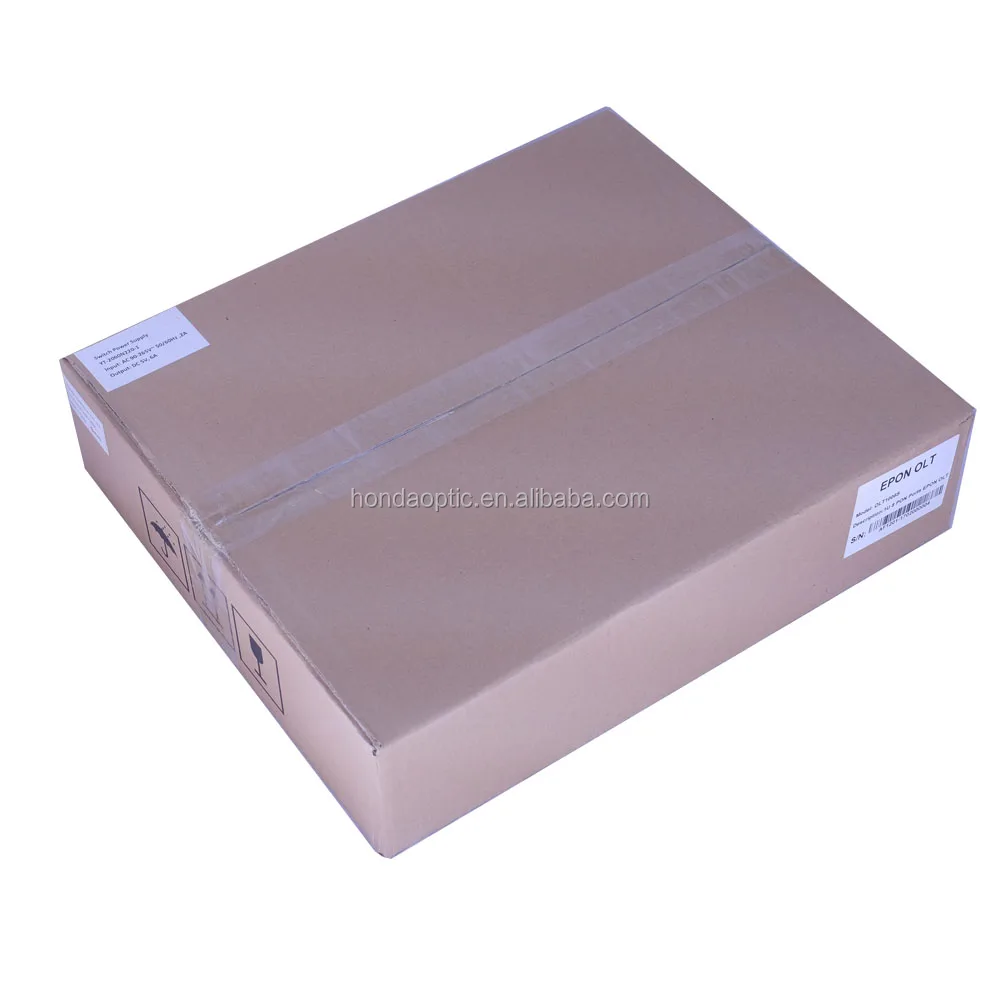

Product Packing
Certifications
Our Company

With years of export experience along with excellent quality, advanced services and competitive prices, Hondao has won numerous customers' trust and support.Our one stop shop gather thousand of product from the various of dhinese factory as well as a lot of well-know brands .

Win-Win is our business Cooperation . Hondao Is your Good partner in Fiber Optic Communication .

FAQ

IF YOU HAVE ANY PROBLEM ,YOU CAN CONTACT ME

FOR EXAMPLE :

Q:How long is the delivery time for the goods?

A:during 7-25days

Q:What is the product used for packing?

A:We always use catron, Unless you have different packing needs .

Q:what's the way to pay?

A:We support T/T, WESTERN UNION,OEN,OBN,OHTERS

it's welcome
